Why DIY Spring Repair Is Dangerous

What we find when we arrive after a DIY attempt, and the part the tutorial skipped.

Call (689) 407-8963 Get a free quote

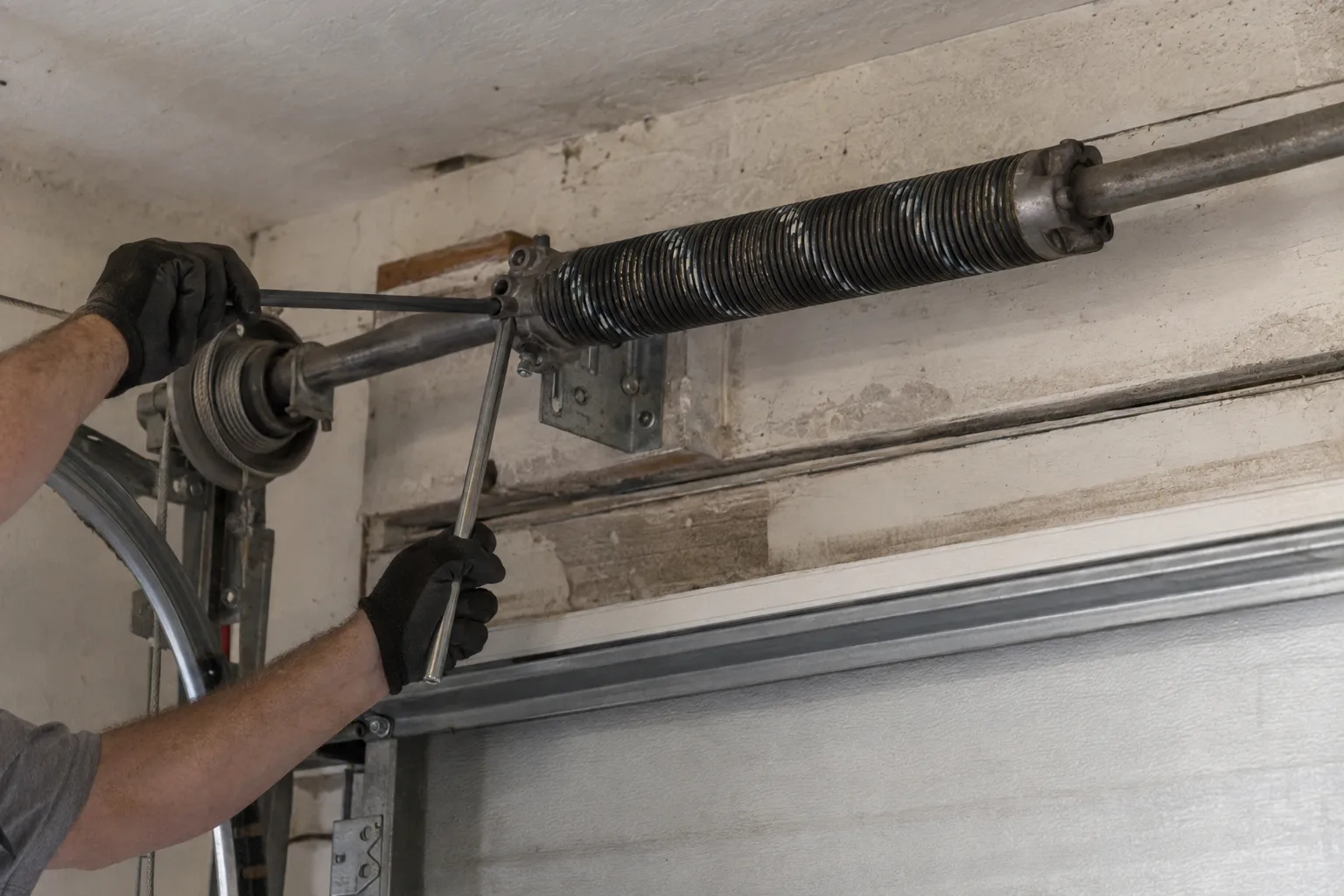

Steel winding bars inserted into a torsion spring bracket above a residential garage door, lit by warm Florida midday sunlight, emphasising the tightly coiled spring mechanism

FL license #93-2002026
Six years of spring work across the Orlando area
24/7 emergency dispatch
Springs matched by measurement, not by eye

The energy is the whole problem

A wound torsion spring holds the energy that lifts the door. Winding bars are steel rods inserted into the winding cone to add or release that tension under control, and they exist because the alternative is releasing it all at once.

The substitutions we find are a screwdriver, a length of rebar, a bolt. Each one gives an unstable grip on a component under full tension, and a grip that slips does not give you a second chance to reconsider.

The video makes it look manageable because the person filming it has done it before, with the right bars, on a spring they measured. That is the part that got edited out. Spring work runs under garage door repair in Windermere, and you can verify it with the Florida DBPR for whoever you hire.

The spring you ordered is probably wrong

Almost every DIY call starts the same way: the replacement was ordered on the diameter of the old one. Diameter alone does not specify a spring.

The match is on wire gauge, inside diameter, length and the door's actual measured weight. A spring that looks identical to the one that broke can be rated for a door sixty pounds lighter than yours, and it will feel fine on the day and fail early.

That is also why the door gets weighed rather than estimated. Spring cycle ratings are measured to the test methods published by DASMA, the industry standards body, and a rating means nothing if the spring was matched to the wrong door.

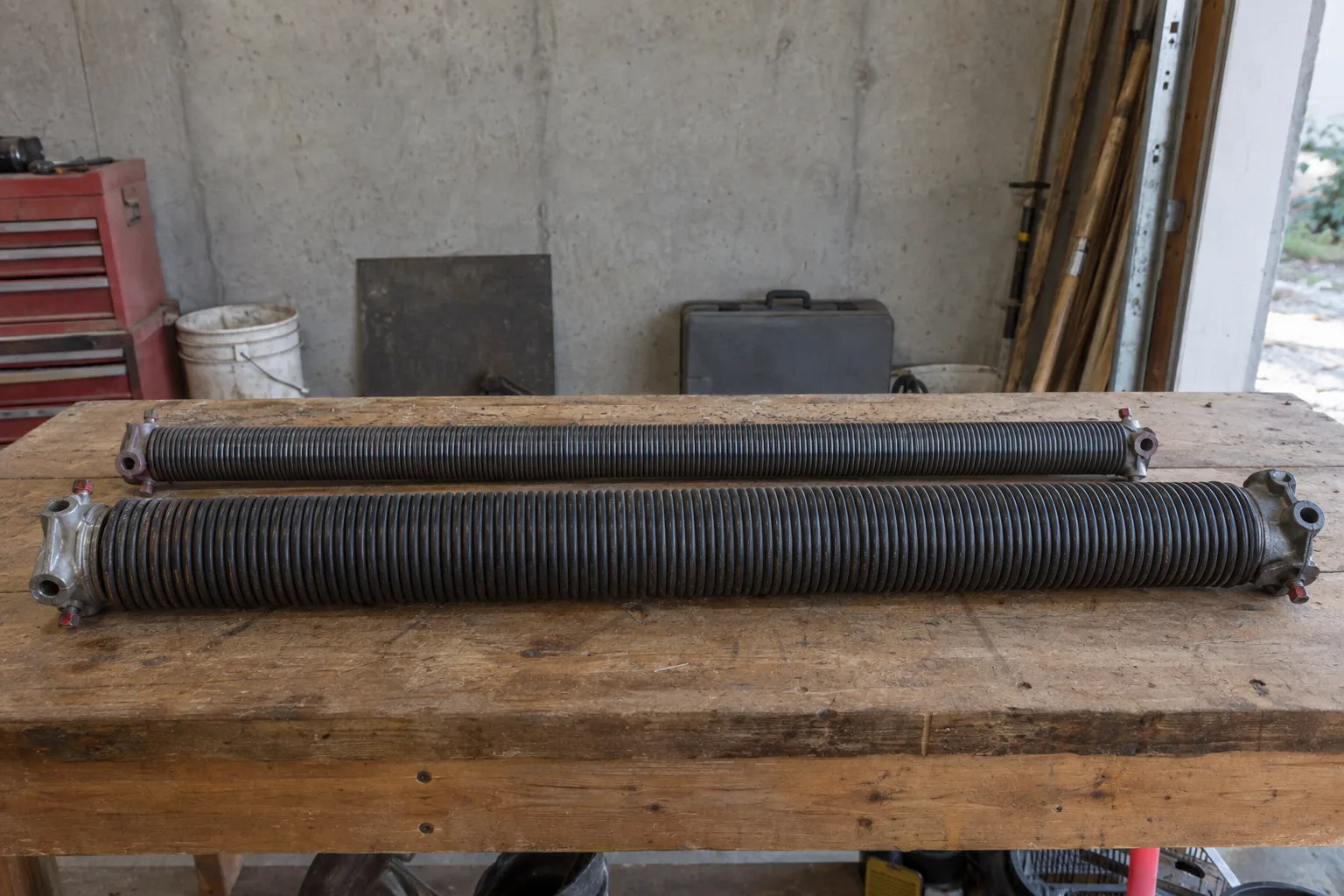

Two torsion springs of different wire gauges placed side by side on a wooden workbench under fluorescent workshop lighting, showing a clear size difference between the two coiled springs

What we typically find on these calls

The pattern is consistent enough to describe before pulling into the driveway.

A spring matched on diameter alone, wrong on gauge or length
Improvised winding tools instead of proper bars
One spring replaced on a two-spring door
Cables left off the drums or wound unevenly
The door never weighed, so tension is guesswork
Safety devices disconnected to test the door

There is no judgement in this list. It is what the job actually requires, and none of it is obvious from a video.

Call (689) 407-8963

What is safe to do yourself

Plenty of garage door maintenance is homeowner work. This is where the line sits.

Reasonable to do

No stored energy involved.

Clearing the photo eye beam path and wiping lenses
Cleaning the track, without lubricating it
Lubricating hinges and rollers with the right product
Checking the balance by hand with the opener released
Replacing a bottom seal on a sound retainer

Leave alone

Stored energy, or the door's load path.

Anything involving winding or unwinding a spring
Cables, drums and bottom brackets
Lifting a door that is off its track
Bending a track section back
Bypassing a safety sensor to make a door close

If you have already started and the spring is partly wound, that is a call we take at any hour rather than a lecture.

Where we work

Windermere, FL 34786

Primary service zone, Orange County. Not sure whether you are inside the radius? Call (689) 407-8963 and ask.

Windermere 34786
Winter Garden
Ocoee
Bay Hill
Gotha
Apopka
Clermont
Maitland
Kissimmee
Pine Hills
Orlando
Oak Ridge

Repair cost guide Repair or replace Heat and humidity damage Orange County permits
