Why does my door go down and then come back up?

Either the beam is being broken partway, or the force limits are set so the opener reads normal resistance as an obstruction. Both are testable, and the difference matters because one is a five minute fix.

One sensor light is blinking. What does that mean?

The beam is not completing. Usually it is alignment, a dirty lens or something in the path. If none of those, it is the wiring or the unit.

Can I just bypass the sensors?

No. They are the entrapment protection that has been required on residential openers since 1993, and bypassing them makes the door capable of closing on a person. If someone has already bypassed yours, tell us and we will put it right.

How high should the sensors sit?

Low, near the floor, so the beam catches a child or a pet and not just a vehicle. If yours have been moved up out of the way, that is worth fixing.

Is this a same-day repair?

Usually. Alignment and wiring faults are resolved on the visit, and dispatch runs 24/7 when a sensor fault has left a garage unsecured overnight.

Do you test the reversal before leaving?

Every time. The beam gets interrupted by hand and the door has to stop and reverse, and we show you the result rather than just reporting it.

Sensor Repair in Windermere, FL

Photo eye alignment, a full wiring trace, and a live reversal test before we leave.

Call (689) 407-8963 Get a free quote

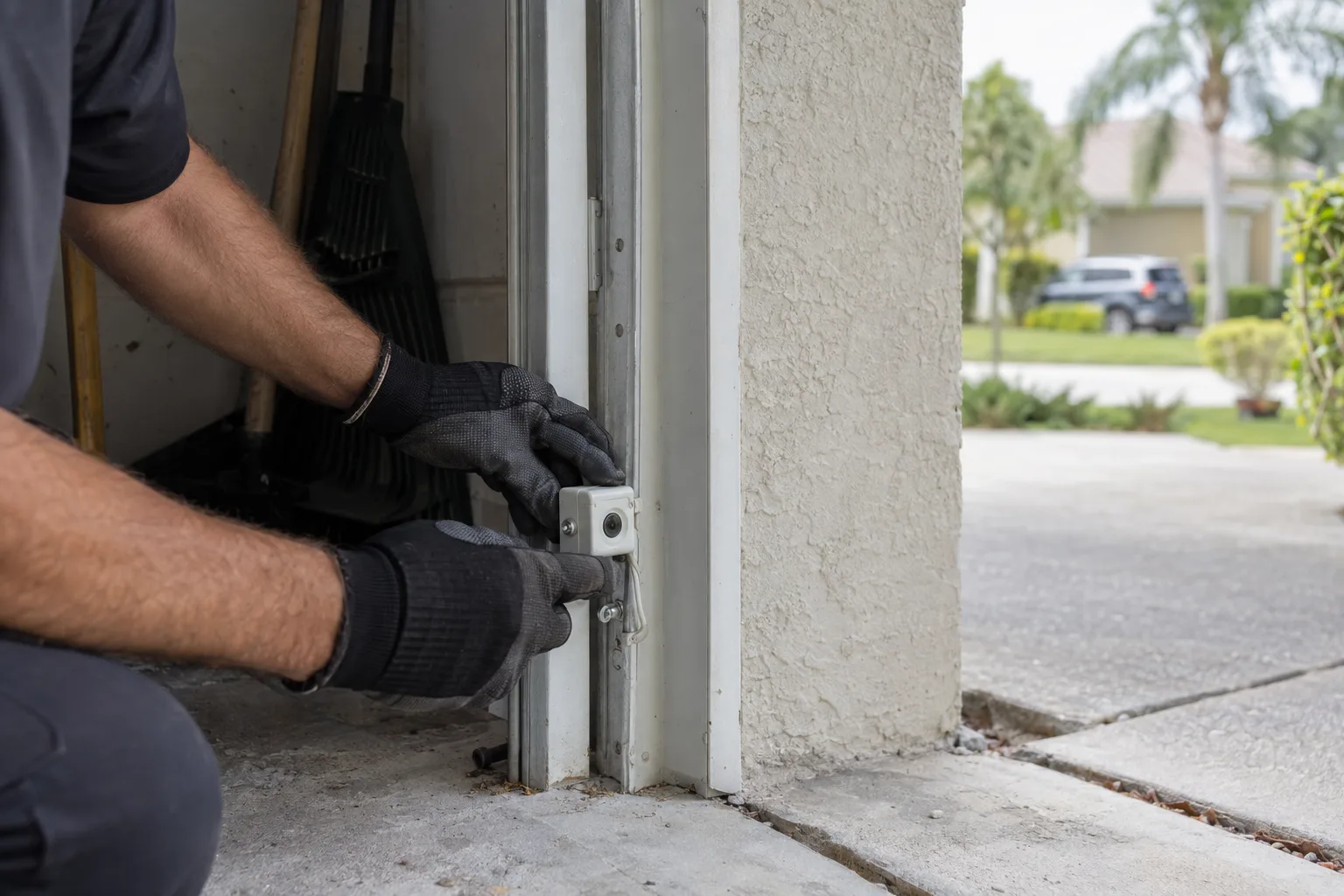

A technician's gloved hands adjusting a small white photo-eye safety sensor mounted near the base of a residential garage door frame, with a concrete driveway visible in the background on a sunny day.

FL license #93-2002026
Both units checked, adjusted and locked
Low-voltage wiring traced end to end
24/7 dispatch for a door left unsecured

A door that will not close is usually the beam

The photo eyes are the infrared transmitter and receiver mounted low on each side of the opening. If the beam between them is broken or misread, the opener refuses to close the door. That is the safety system working, even when it is inconvenient.

It is the first place to look on a door that will not close, and the diagnosis runs in order: the units themselves for damage, lens buildup and indicator status, then the low-voltage wiring back to the opener head, then the board.

Reversal on an obstructed beam has been required on residential openers since 1993, and the eyes have to sit low enough to catch a child or a pet rather than just a car bumper. This work runs under garage door repair in Windermere.

The oak canopy problem

Mature oaks on these lots drop pollen, fine debris and webbing straight down in front of the beam path, and it lands worst in spring and after storms. A partial blockage is enough to trigger the reversal.

Then the debris clears and the door works again, so the fault looks intermittent and nobody calls. The cycle repeats for weeks.

By the time it becomes a service call, the low-voltage wiring has often developed a second fault from repeated handling and knocks, which is why the wiring gets traced rather than the lenses just wiped.

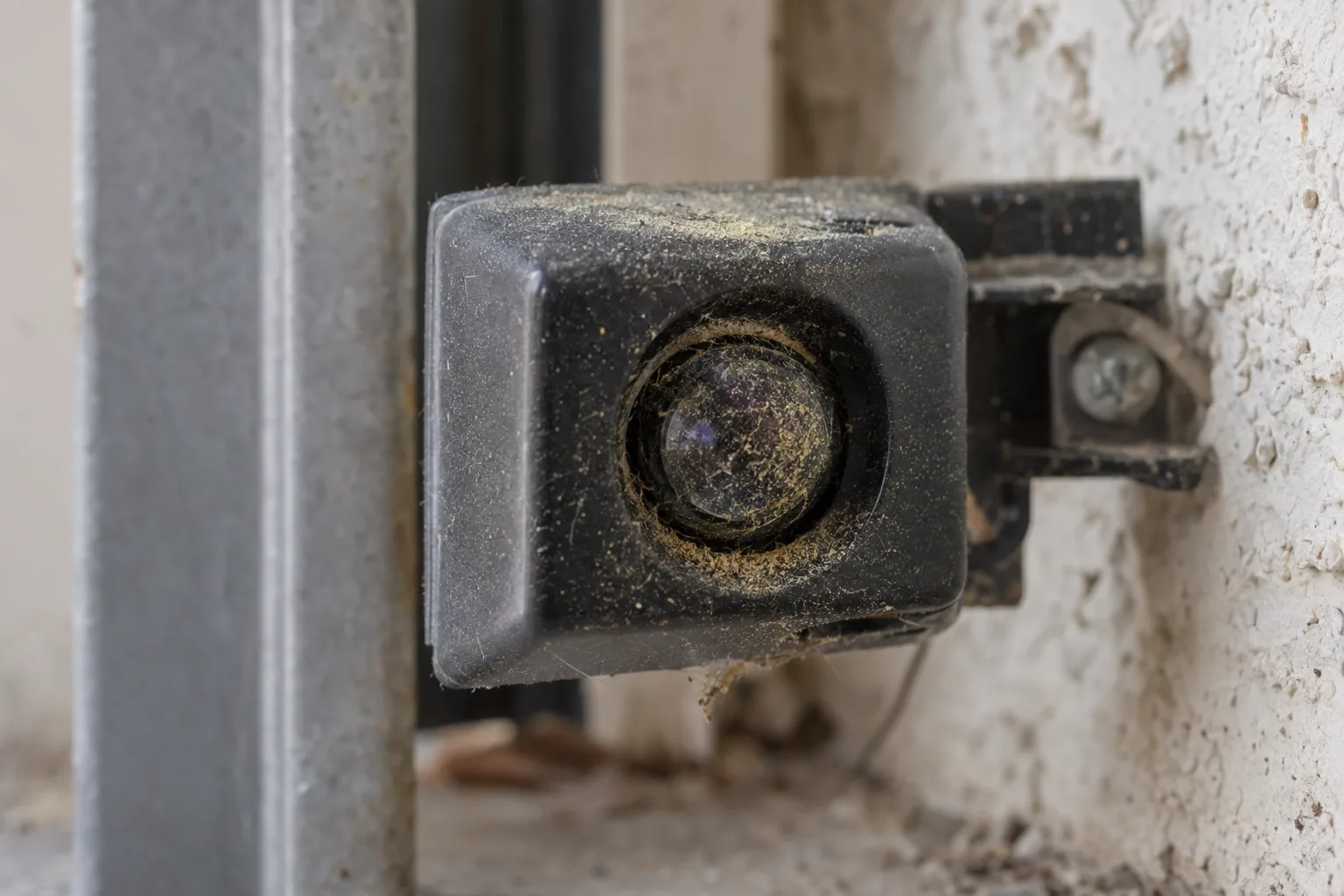

Macro close-up of a garage door photo-eye sensor lens heavily coated with fine yellow pollen and dust, with a blurred stucco garage wall visible in the soft background.

How the diagnosis runs

In order, so parts are not replaced on a guess.

The units themselves
Both transmitter and receiver checked for physical damage, lens buildup and indicator status. A blinking light means the beam is not completing.
Alignment
Both units adjusted and locked in position rather than eyeballed, because a bracket that moves once will move again.
Wiring trace
The low-voltage run from each unit back to the opener head, checked for crush damage, corrosion and loose terminals at both ends.
Board test
If alignment and wiring are clean and the fault persists, the logic board response is tested before anything is replaced.
Live reversal
The beam is interrupted by hand and the door has to stop and reverse. We show you the result before we leave.

What we look at beyond the sensors

A reversing door is not always the eyes, and the other causes are quick to rule out.

Beam path clear of debris, webbing and stored items
Bracket condition, since a knocked bracket moves the alignment
Travel and force limits, which can mimic a sensor fault
Track and roller binding that stops the door short
Door balance, since a heavy door triggers force reversal
Wall control and remote behaviour for a stuck input

If the door reverses partway down rather than refusing to start, that is usually force limits or an obstruction rather than the beam. Entrapment protection requirements for openers come from the standards published by DASMA, the industry standards body.

Call (689) 407-8963

Where we work

Windermere, FL 34786

Primary service zone, Orange County. Not sure whether you are inside the radius? Call (689) 407-8963 and ask.

Windermere 34786
Winter Garden
Ocoee
Bay Hill
Gotha
Apopka
Clermont
Maitland
Kissimmee
Pine Hills
Orlando
Oak Ridge
