What is a sectional overhead door?

A garage door built from four to six horizontal panels joined by hinges. The panels follow a curved track and travel straight up, resting flat under the garage ceiling, so nothing swings out into the driveway.

Can you replace just one damaged panel?

Often, yes. Because the door is made of separate sections, a single damaged panel can be swapped when the rest of the system is sound and the panel is still available for that model. We assess each panel on site before recommending anything.

Why is my sectional door suddenly noisy?

The most common cause we find is a roller worn flat, dragging along the track instead of rolling. Binding hinges and a track out of alignment produce the same complaint. It is worth diagnosing early, because friction accelerates wear on everything around it.

What sizes do sectional doors come in?

Around here the common residential configurations are 8 foot wide single and 16 foot wide double openings. We confirm the rough opening on site before anything is ordered.

Does a shifting concrete slab really affect the door?

It does. Slab-on-grade construction is standard in Central Florida, and slabs move with moisture. A low spot at the floor line throws the bottom panel out of square, which puts stress on every hinge above it.

Do you handle commercial sectional and rolling doors?

Yes, under the same license, including rolling steel, coiling doors and loading dock equipment.

Sectional Overhead Doors in Windermere, FL

Panel by panel assessment first. Sometimes one section is the whole job.

Call (689) 407-8963 Get a free quote

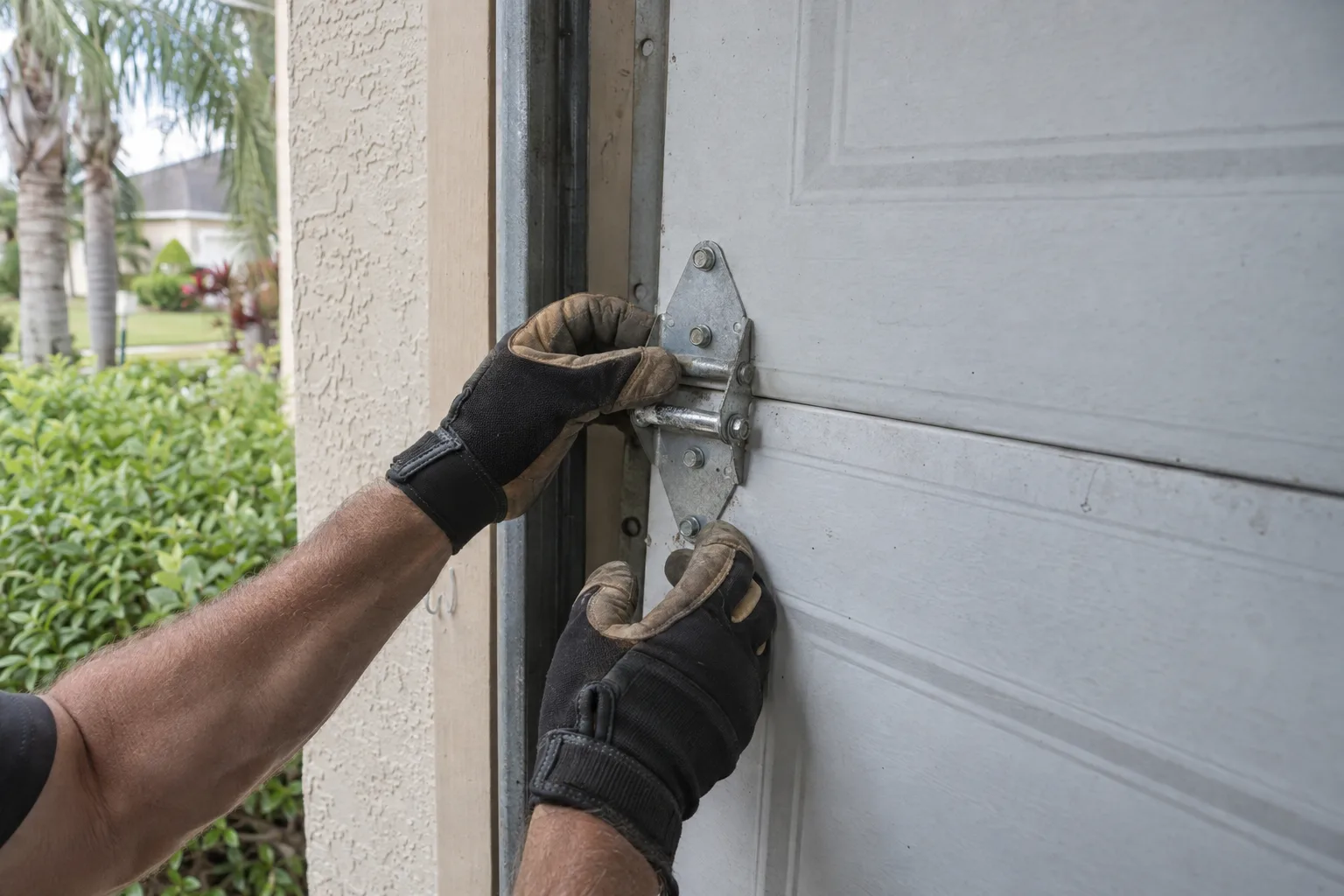

Gloved hands examining a steel hinge connecting two panels of a white sectional overhead garage door on a Florida home, bright morning light, tropical greenery in the soft background

FL license #93-2002026
Each panel assessed on its own before we quote
24/7 emergency dispatch
Five or more cycles run before sign-off

Why almost every house here has one

A sectional overhead door is built from four to six horizontal panels joined by hinges. Opening it folds the panels along a curved track and carries them up to rest flat under the ceiling.

Nothing swings out into the driveway. On the tight aprons and curved driveways common in Windermere, that is the whole reason the design won, and it is why sectional doors dominate ranch-style homes, three-car garages and narrow lots alike.

The part most homeowners do not know: because the door is separate panels, a damaged section can often be replaced on its own. Panel construction standards published by DASMA, the industry standards body are what make that interchangeability possible, and it is why we assess each panel independently before recommending anything.

How we run a sectional door job

Assessment before action, diagnosis before recommendation, the same sequence every time.

Manual cycle first
We run the door by hand through a full open and close with our hands on the panels, feeling for resistance at each hinge point. Then we run it under power.
Track, rollers, seal, spring, cable
Track pitch and alignment, every visible roller, the bottom seal, spring tension and cable condition. Only after that do we name the failure.
Floor line check
Slab-on-grade is standard in Central Florida and slabs shift with moisture. A low spot at the floor throws the bottom panel out of square and stresses every hinge above it.
Repair or replace, said plainly
Panel swap, hardware replacement or a full replacement. For new installs we confirm the rough opening before ordering, commonly 8 foot single and 16 foot double here.
Five cycles minimum
After any repair or install we run at least five full cycles, check the auto-reverse sensors and confirm the door travels level across the opening.

What a weird noise usually turns out to be

Most calls start with the same sentence. The door is making a weird noise. Walked through a manual cycle, the resistance usually shows up at one joint, and the roller on that side has worn flat, dragging a hard edge along the track instead of rolling.

Flat rollers create friction, friction creates heat, and heat on a track that is already hot in a Central Florida garage accelerates the wear on everything above the joint. A replaced panel next to a stressed hinge will create a new problem within a season, which is why adjacent components get checked before we close up.

That is also the honest argument for assessment first. If the answer is one roller and one hinge, we would rather tell you that than sell you a door.

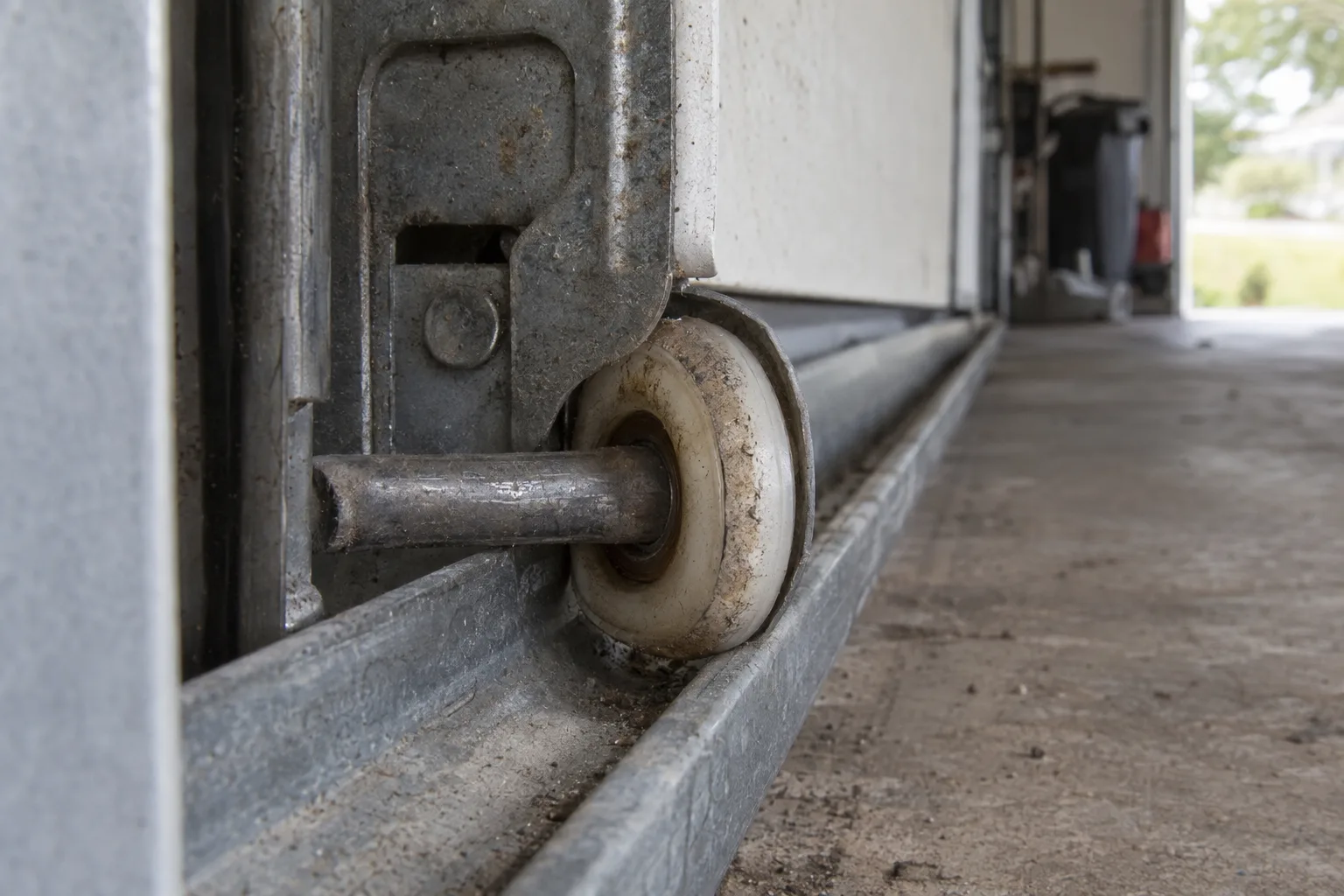

Worn garage door roller with a flattened stem inside a galvanised steel track, photographed at track level inside a residential garage with soft natural light

One panel or the whole door

Both answers are common. Which one applies comes down to what the rest of the system looks like.

A section swap is enough when

The damage is contained and the rest of the system still has life in it.

One panel took an impact and the others are sound
Track, springs and cables are in serviceable condition
The door still runs level across the opening
The panel is still available for that door model

Replacement is the better call when

The failures have started to move around the system.

Several panels are denting or cracking from thermal cycling
Track brackets have pulled off the framing
Springs, cables and rollers have each been replaced separately
The panel line is discontinued and cannot be matched

Still weighing it? The repair or replace guide works through the same decision in detail.

What we check on every sectional call

The list does not change whether the call is a noise complaint or a full installation.

Resistance at every hinge point through a manual cycle
Track pitch, alignment and bracket seating
Every visible roller for flat spots and stem wear
Spring tension against the door weight
Cable condition, drum seating and even winding
Bottom seal, floor line and squareness of the lowest panel

New sectional doors carry a wind-load rating requirement and Orange County lists garage doors as permit work. Commercial and rolling steel work runs through the same license: see rolling steel and coiling doors.

Call (689) 407-8963

Where we work

Windermere, FL 34786

Primary service zone, Orange County. Not sure whether you are inside the radius? Call (689) 407-8963 and ask.

Windermere 34786
Winter Garden
Ocoee
Bay Hill
Gotha
Apopka
Clermont
Maitland
Kissimmee
Pine Hills
Orlando
Oak Ridge
